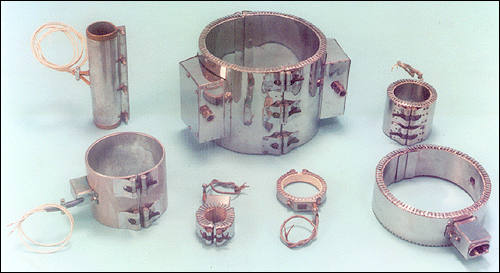

Ceramic & Mica Insulated Band Heaters
Application
Basically this type of heater is applied in plastic injection moulding machines of various makes.
It is also used for heating dies, plattern pipe sections, nozzles etc.
Construction

Sheathing - rust resistant steel, brass or stainless steel are used with clamps & screws to affix the
heater rigidly on cylinder. It is also available in two halves with asbestos heat insulater cover.
Heating elements - Nichrome ribbin wire wound mica strip are made suitable to the sizes insulated with mica blocks. The element is wound uniformly to eliminate hot spot. For temperature upto 600°C, the heater is also available with helix coiled element insulated with grooved refractories.
Standard sizes and capacities

Inner dia. - 25 mm to 300 mm
Width - 25 mm to 300 mm
Volts - 230 / 250
Watts - 80 to 3000
