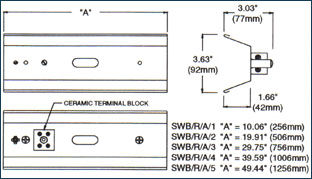

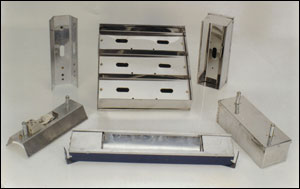

Type SWB/R/A - Reflector Only
Made from 20 Ga. [.036"
(.9mm)] polished aluminized steel with one or more terminal blocks and
mounting studs. Can be fitted with either FTE, FFE, HTE, or HFE ceramic
emitters and mounted in any direction.

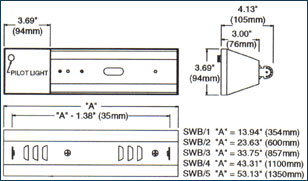

Type SWB/
A complete reflector
assembly with reflector, outer case, terminal blocks and a red pilot
light. They can be fitted with either FTE, FFE, HTE, or HFE type ceramic
emitters. Both the reflector and outer case are manufactured from 20 Ga.
[.36" (.9mm)] polished aluminized steel. The units are prewired and
suitable for applications operating in free air at 70F (21 Deg.c). The SWB has a mounting system
that is easily adjustable to change the angle/direction it is facing. |

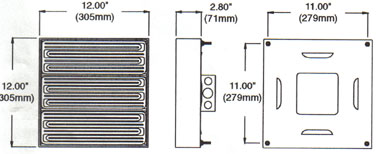

Type CRP - Ceramic Radiant Panel
This heavy duty, modular panel is
manufactured from 20 Ga. [.36" (.9mm)] aluminized steel, insulated with
ceramic fiber insulation, per-wired and assembled with 3 LTE emitters
and customized to your application. Available wired as a three phase or
single phase panel. An optional thermocouple is also available.
|
